eFFiMag

eFFiMag is a simulation tool that allows high frequency inductors and transformers to be analyzed.

It is based on the powerful numerical engine developed in the ACE research group of the University of Liège (http://ace.montefiore.ulg.ac.be/).

  • 2D and 3D with axial symmetry analysis

  • Easy entry of windings configurations

  • Flexible winding definition

  • Round wire, foil and Litz wire support

  • Core and copper losses (DC, skin and proximity effects) evaluation

  • Gap fringing field losses evaluation

  • Easy import of real waveforms (PWL file)

  • Easy import of LTSpice generated waveforms with signal, step and time window selection
  • Textual report with configurable detail level

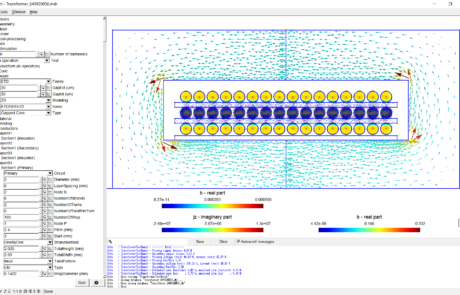

  • Visual analysis of currents and fields

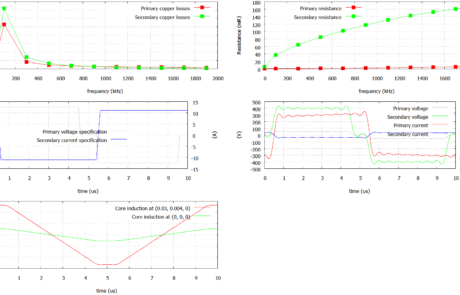

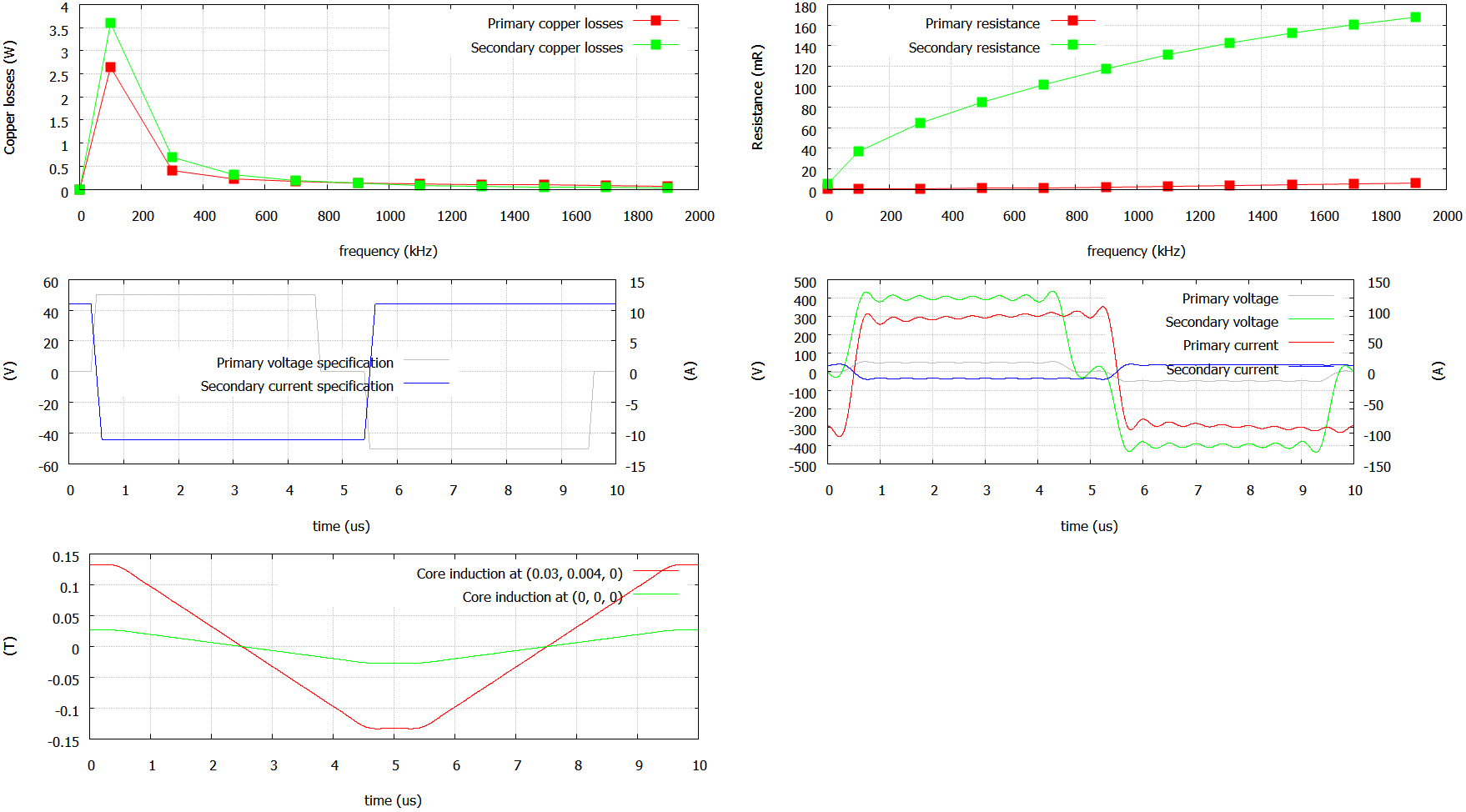

  • Graphical report of relevant variables

  • LTSpice equivalent model generation
